Bituthene® LM (E)

Product Applications

Bituthene® LM (E) is designed to complement GCP sheet systems where liquid applied waterproofing is necessary to ensure watertight continuity. Bituthene LM is a bitumen modified polyurethane sealant that cures to form a tough seamless rubber-like waterproof layer.

Typical details suitable for Bituthene LM (E) are:

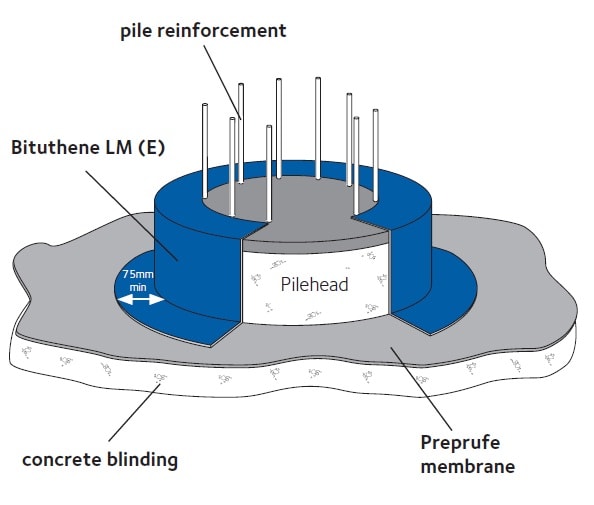

• pile terminations

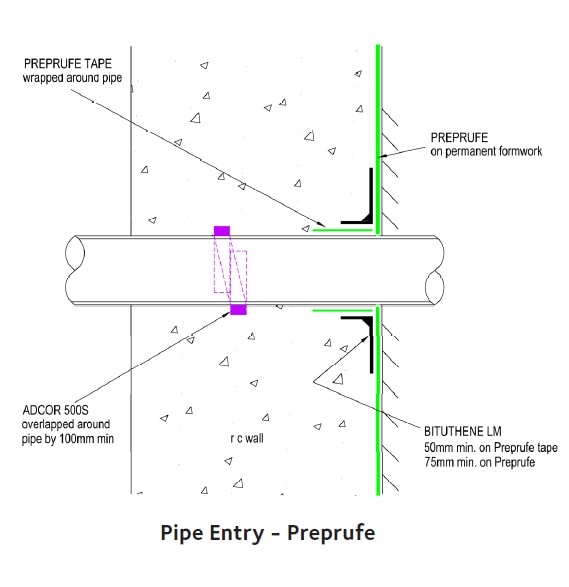

• pipe penetrations
• membrane continuity through masonry
• internal corners
• difficult details

The two parts of Bituthene LM (E) are mixed on site and trowelled on to provide a simple and quick waterproofing detailing aid in conjunction with Bituthene and Preprufe sheet systems

Installation

Substrate Preparation

Surfaces shall be dry and free from dust, dirt, grease or other contaminants. Ambient temperature shall be +5°C and rising. Bituthene LM (E) should preferably be applied prior to the installation of Bituthene waterproofing membranes.

Bituthene LM (E) may be used as a pointing surface sealer. A minimum overlap of the Bituthene sheet membrane of 50 mm shall be provided. Bituthene LM (E) is compatible with dry Primer B1 and Bituthene Primer S2 and the compound used on all Bituthene and Preprufe systems. Bituthene LM (E) will adhere to clean, dry metal substrates.

Mixing

Bituthene LM (E) pack is supplied in a single can containing Part A base with the Part B reactor located separately under the can lid. Using a slow speed mixer with Paddle MR2, pre-mix part A then, add Part B (clear) to Part A (black). Mix the two parts for approximately 1 minute at 100 rpm. Mix for a further 2-3 minutes at 200-300 rpm until uniform blending is achieved. Scrape the sides and bottom of the container during mixing to ensure thorough blending. At temperatures below +10°C, store overnight at +20°C to improve blending and workability. Clean tools and equipment with solvent tool cleaner before Bituthene LM has cured.

Application

Apply Bituthene LM (E) with a serrated trowel or float, solid barrel gun or hand held squeegee to achieve a minimum thickness of 2.5 mm. Once mixed Bituthene LM (E) must be applied within one hour at normal ambient temperatures. Material which has thickened must be discarded.

Bituthene LM shall be allowed to cure for 24 hours before being overlapped by the Bituthene Membrane to achieve watertight continuity.

UV Protection

Bituthene LM (E) is not designed for permanently exposed applications, it should be covered within 30 days of application.

Coverage rates will be dependent on substrate texture.

All declared values shown in this data sheet are based on test results determined under laboratory conditions and with the product sample taken directly from stock in its original packing without any alteration or modification of its component parts.
